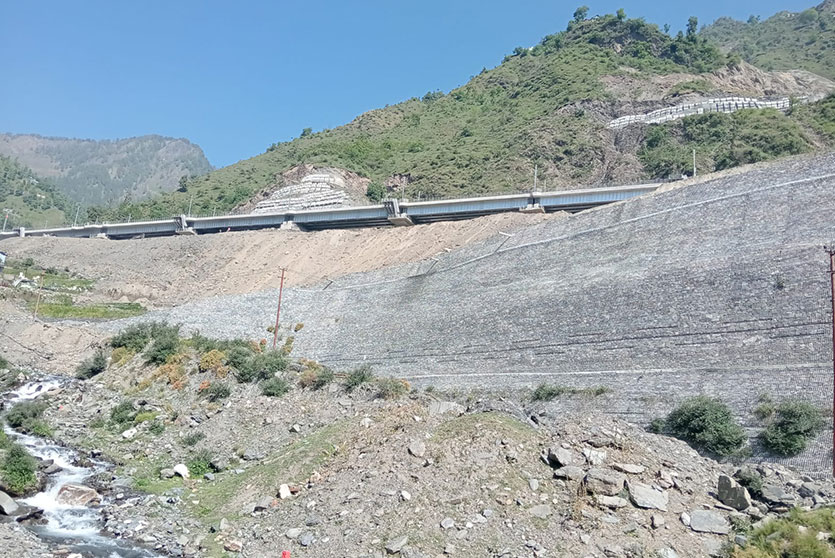

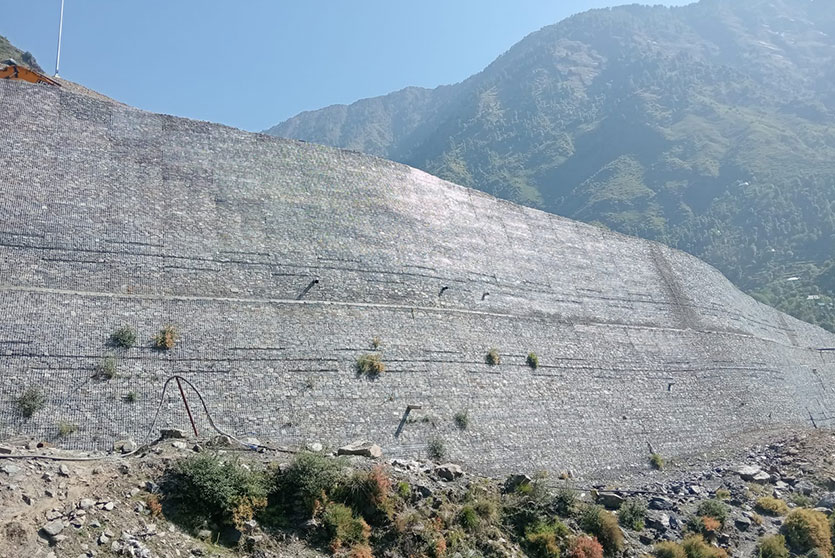

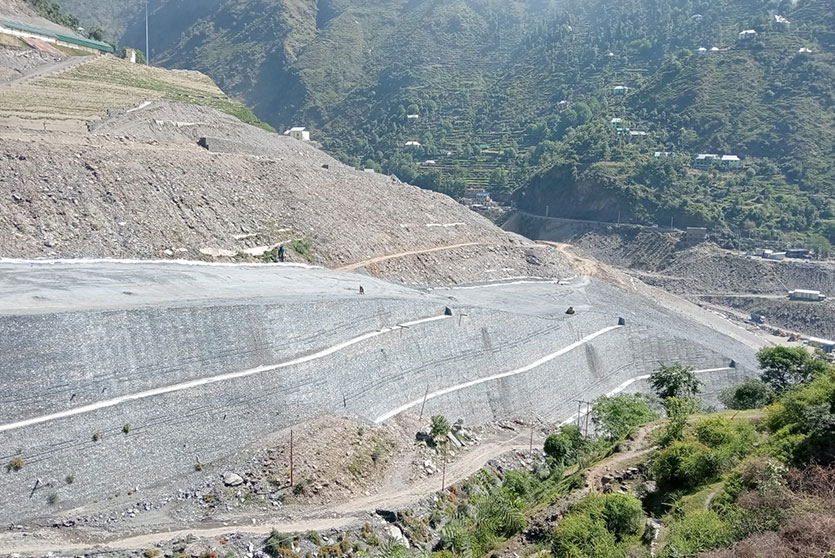

Geoquest India proposed a unique solution of GeoTrel® system along with TerraLink® wall, to create an Integrated Innovative Engineering Solution for the client that is for more economical, safe, and aesthetic than any other conventional retaining structure. TerraLink® proved to be a unique innovation in reinforced soil structures, offered a safe, economical, and easy-to-install solution when the original ground pro le is limited in space for a conventional GeoTrel® wall. In TerraLink® Galvanized Self Drilling Anchors of FE350 grade, having 38 mm diameter were drilled inside the existing slope. After that Polymeric Reinforcement of desired strength connected to soil nails with the help of Terra Plug and GeoLoop were laid on the compacted soil and further connected to the connector of the GeoTrel® mesh.
